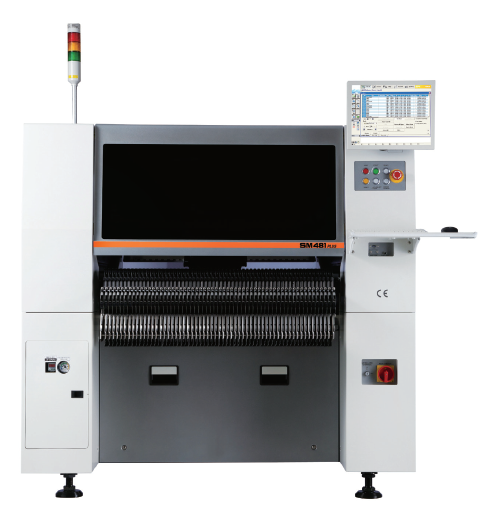

SAMSUNG SM481plus LED Pick and Place Machine

SAMSUNG SM481plus LED Pick and Place Machine
shared：
Specifications
SAMSUNG SMT Pick and Place Machine
Alignment
Flying Vision + Stage Vision (Option)
Number of Spindles
1 Gantry x 10 Spindles/Heads
Placement Speed
40,000 CPH(Optimum)
Placement Accuracy
±40μm@μ+3σ (Based on the Standard Chips)
Applicable Parts
0402 ~ 42mm(H 15mm)
Applicable PCB
460(L) x 400(W)(Standard)
Max. 740(L) x 460(W)(Option)
Feeder Capacity
120ea / 112ea(Docking Cart) (Based on 8mm)
Power
AC200 / 208 / 220 / 240 / 380 / 415V (50/60Hz, 3Phase) Max. 3.5kVA
Air Consumption
0.5 ~ 0.7MPa(5 ~ 7kgf/cm2)
Mass
Approx. 1,655kg
External Dimension(mm)
1,650(L) x 1,680(D) x 1,530(H)
